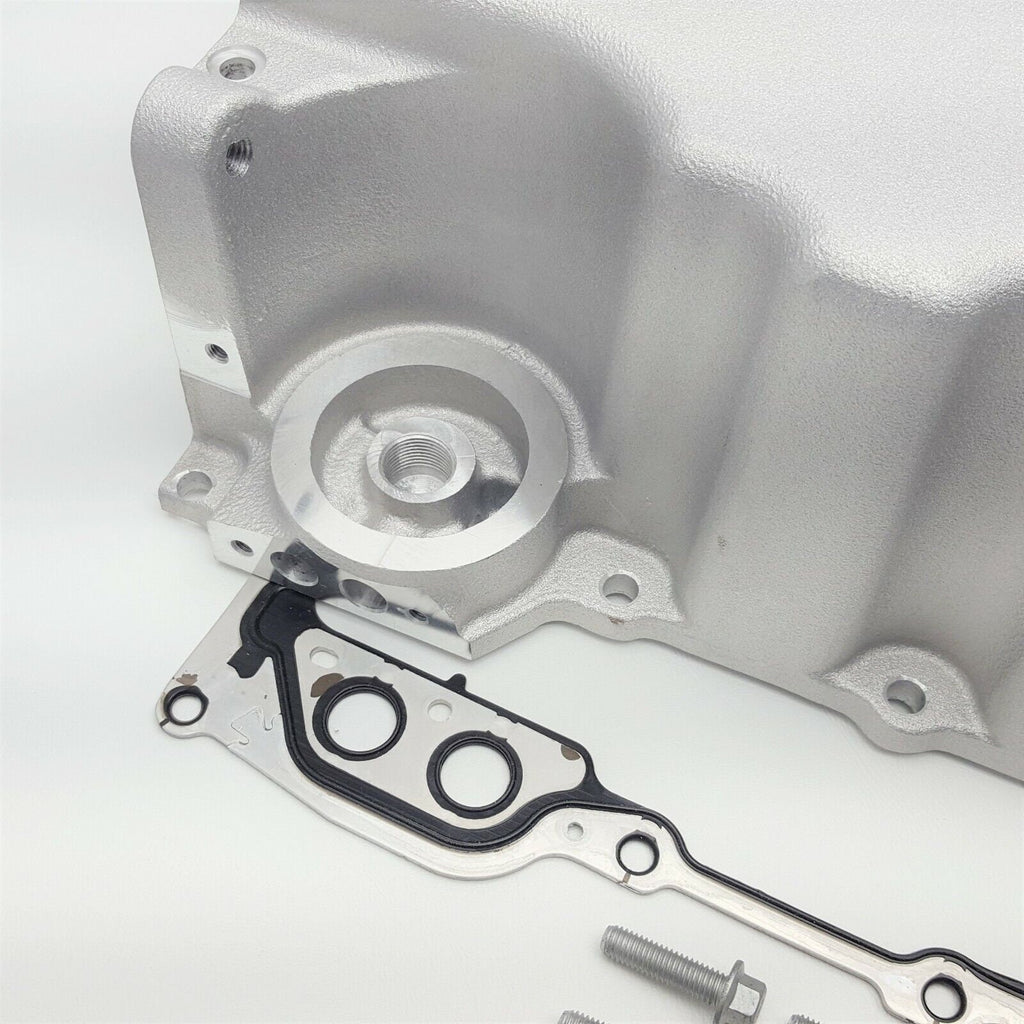

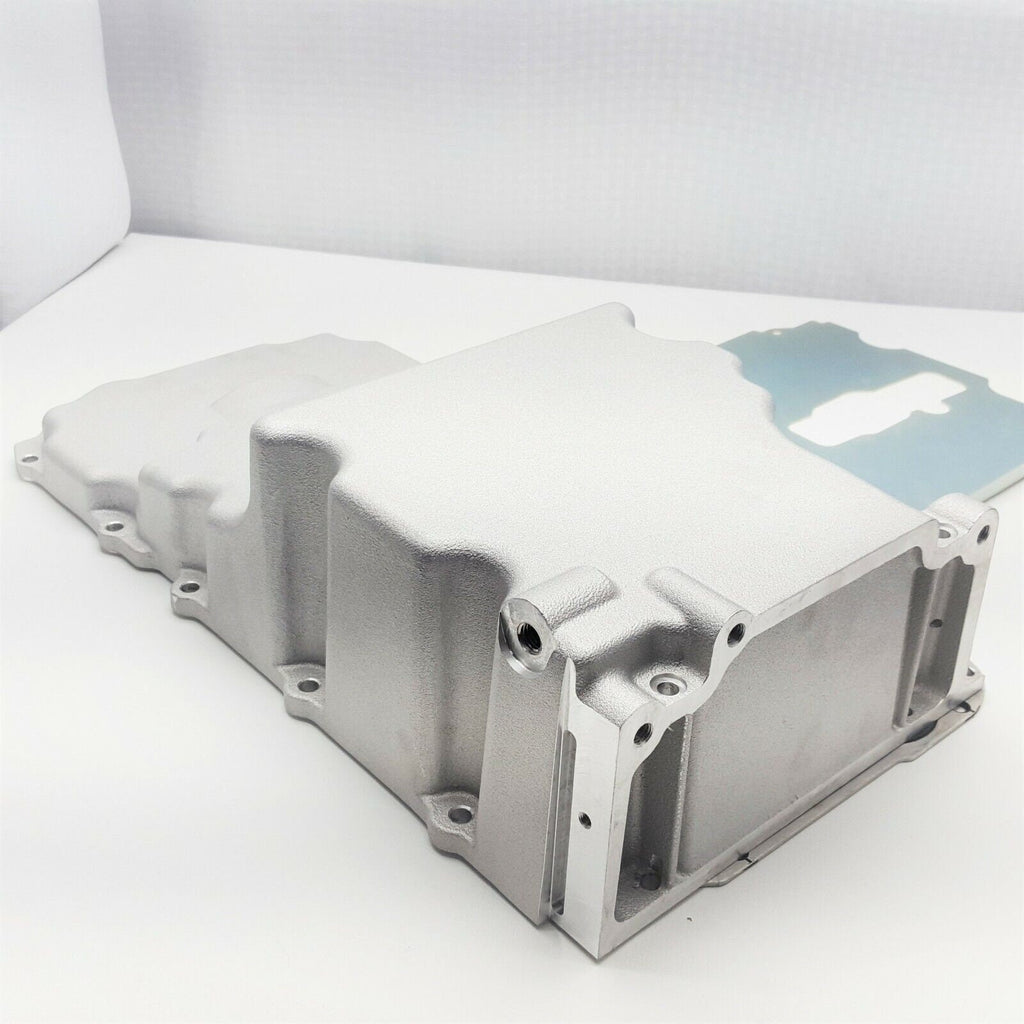

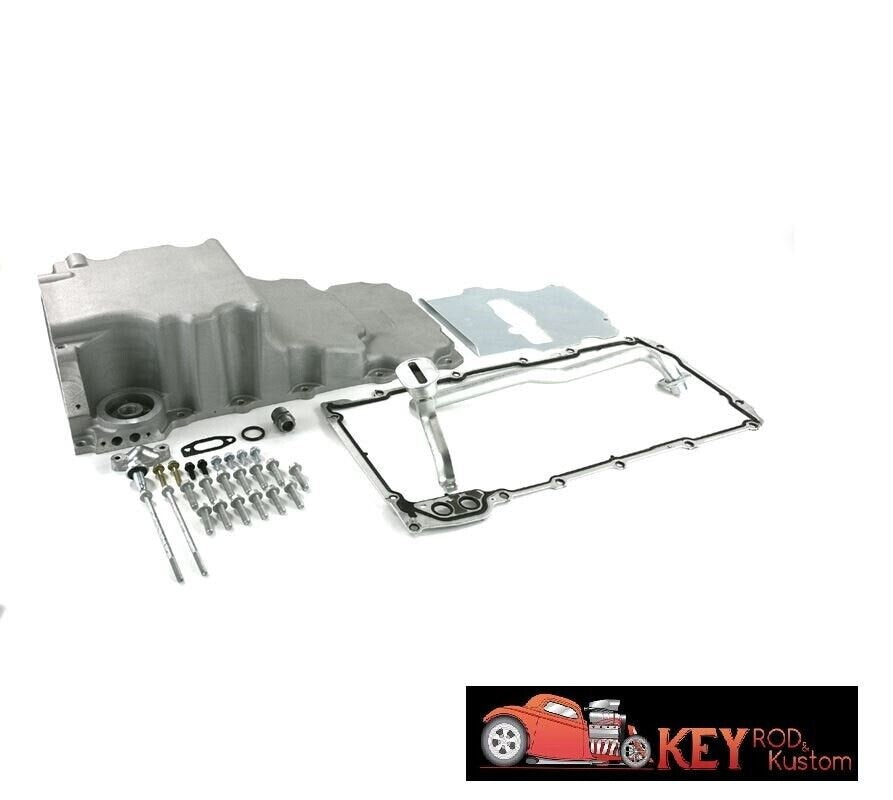

LS engine Low Profile cast aluminum engine oil pan

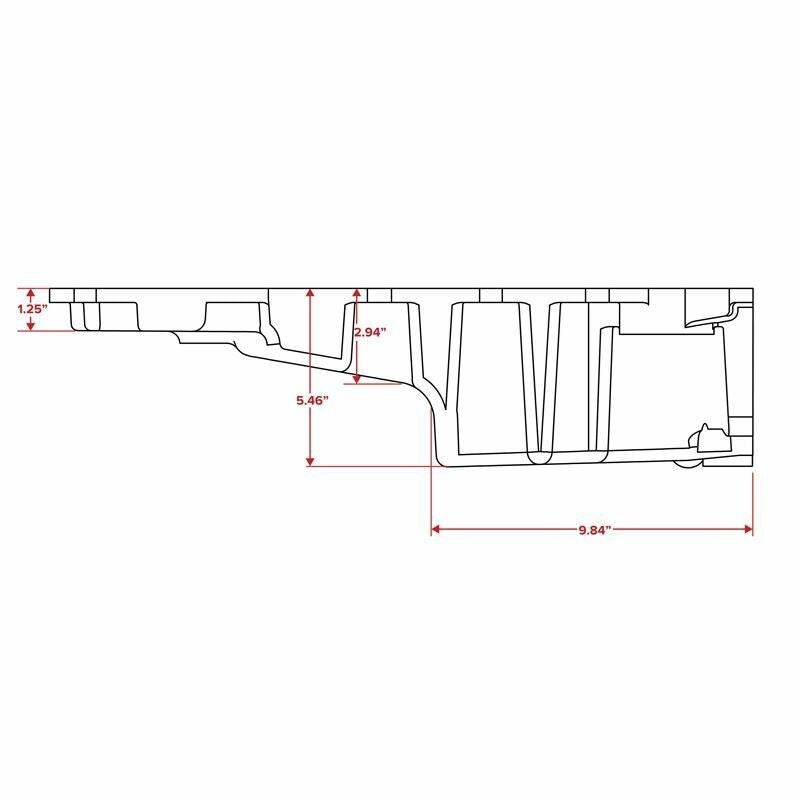

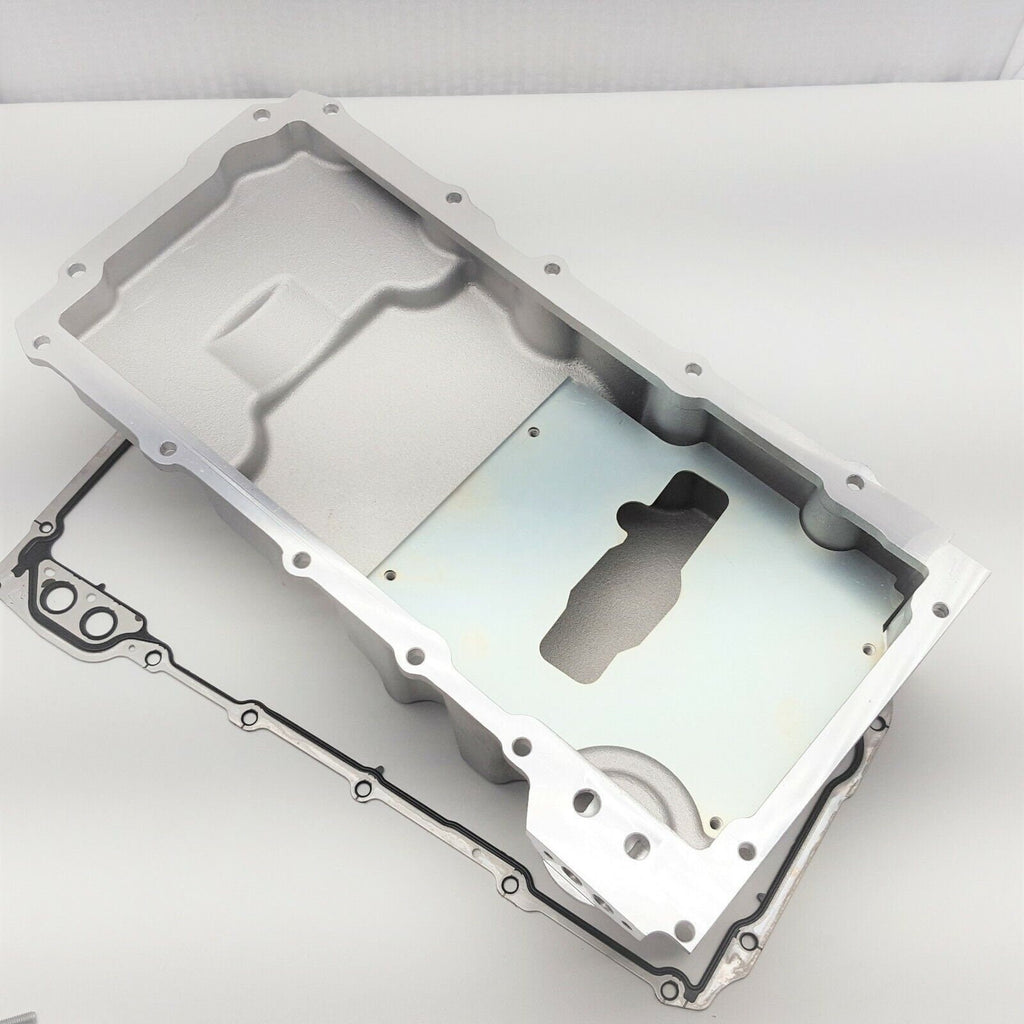

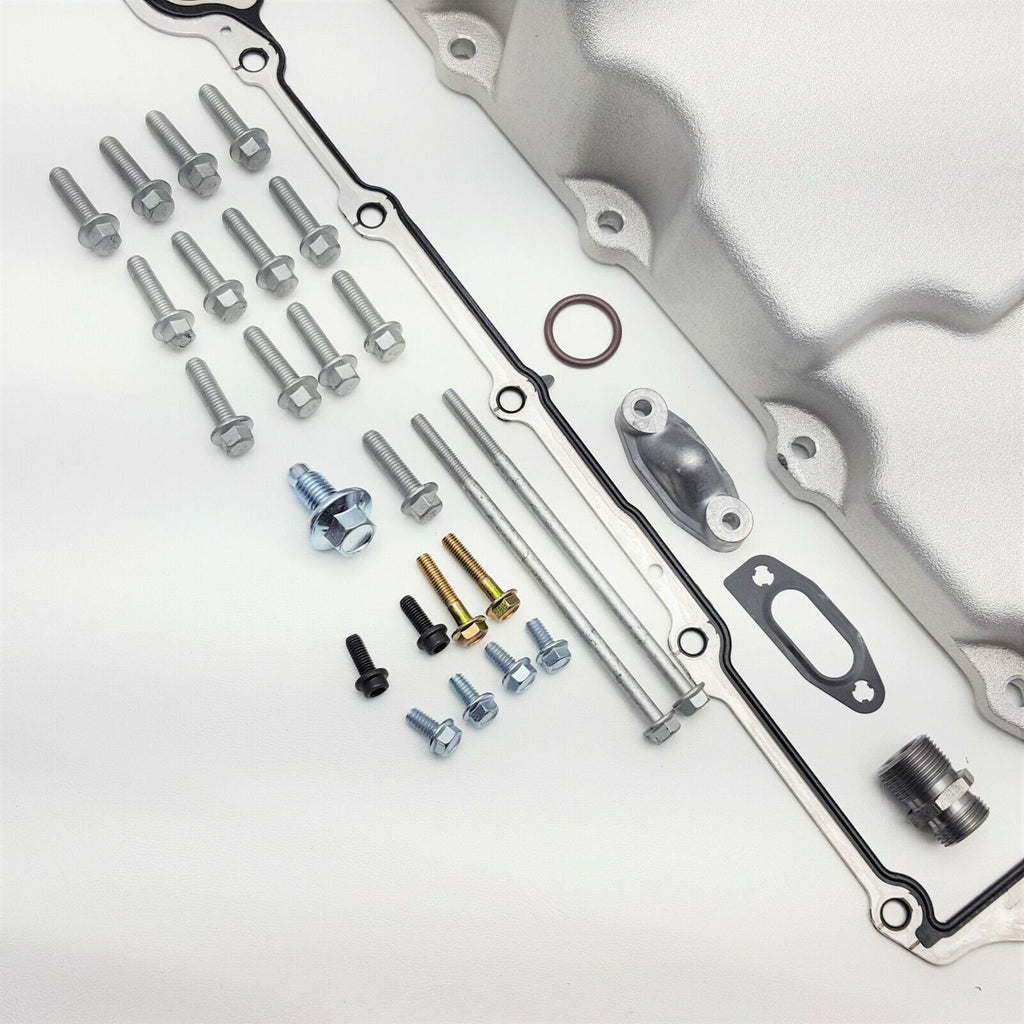

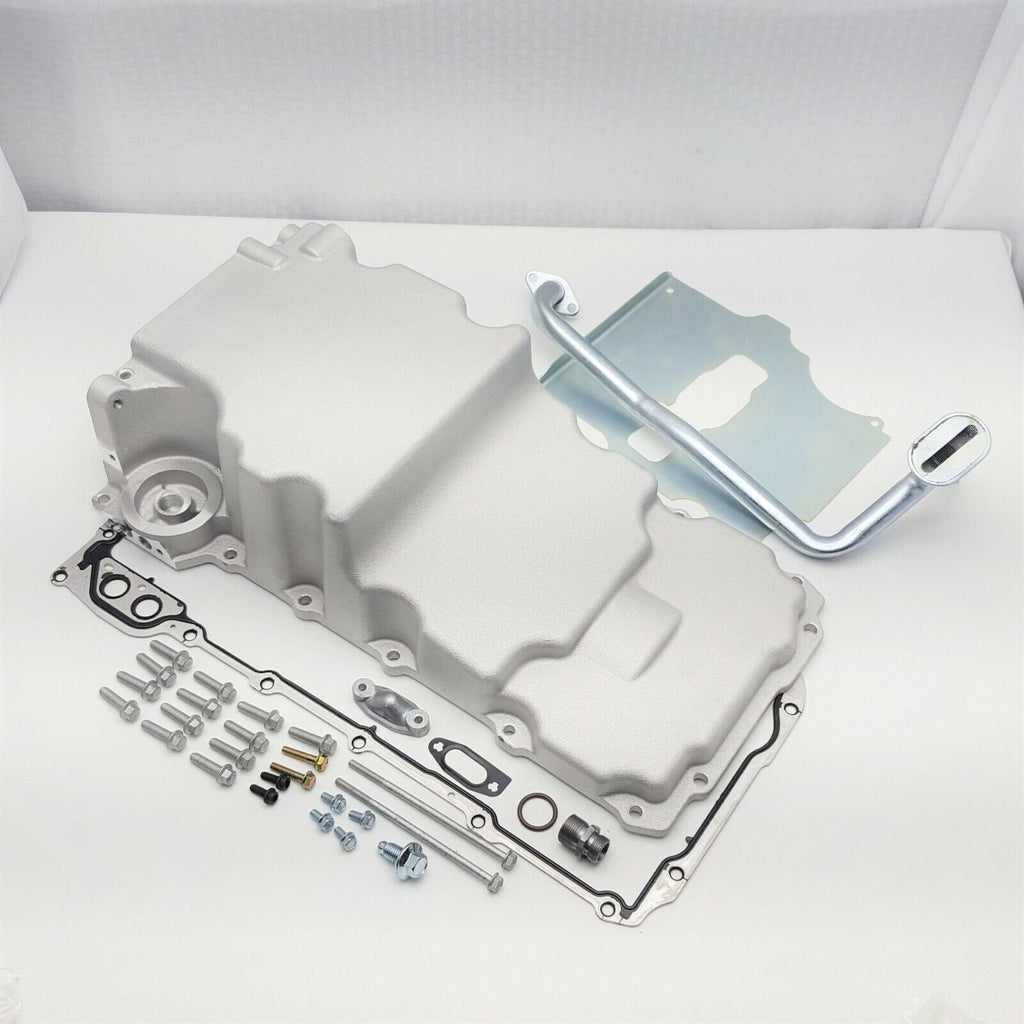

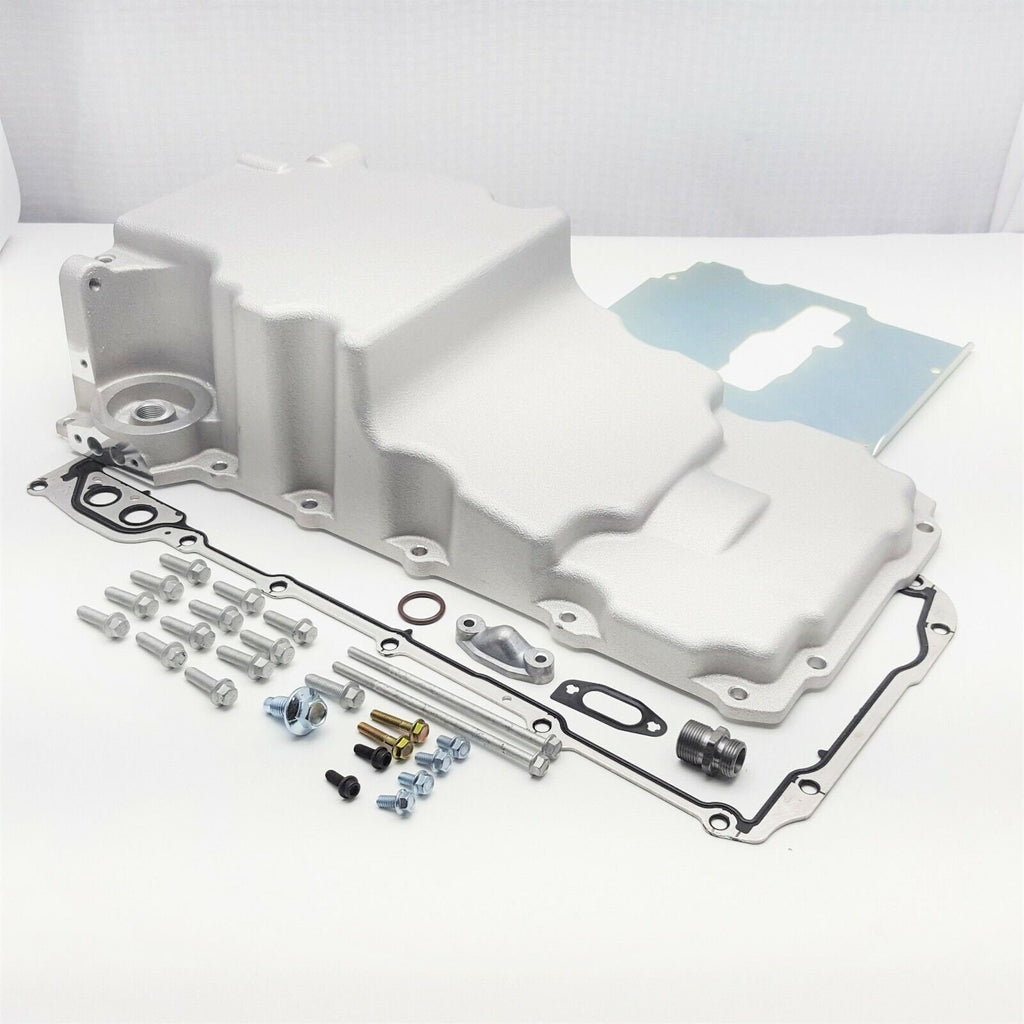

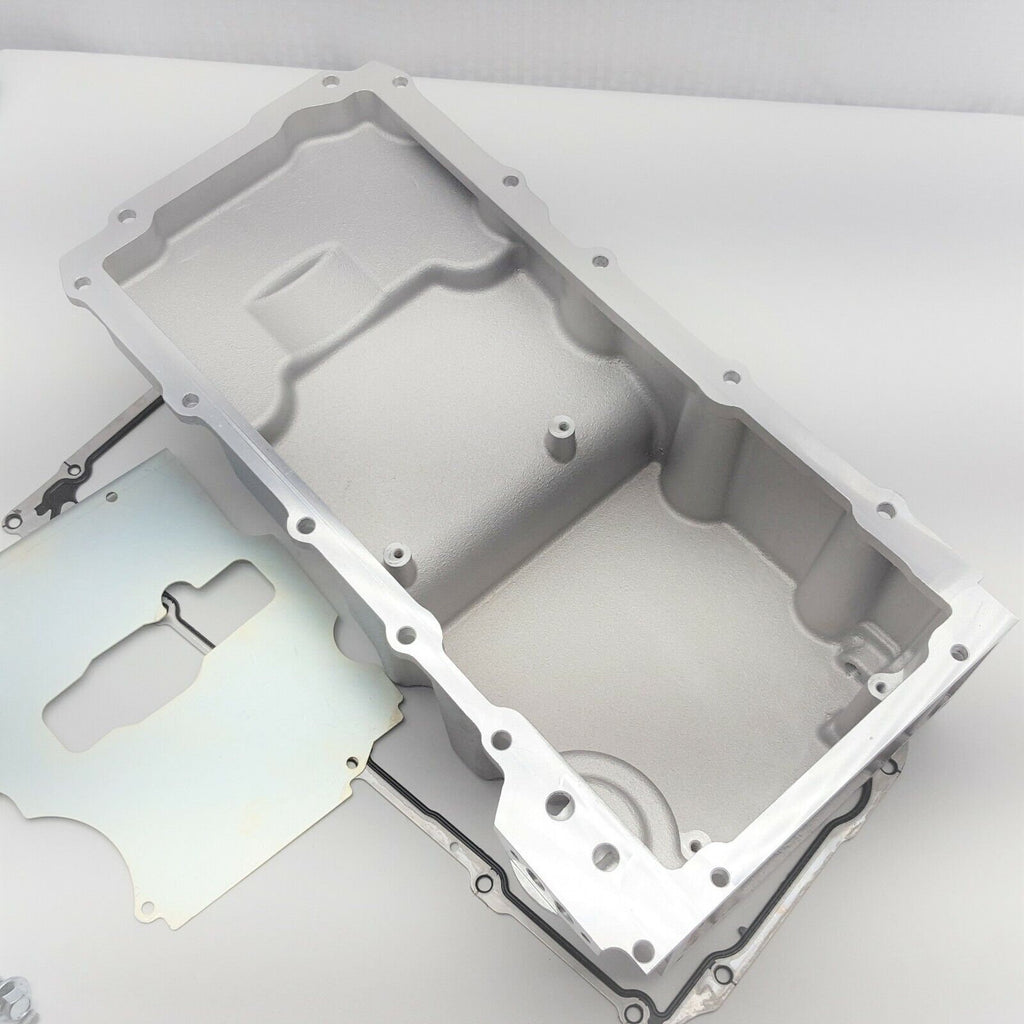

Gen III/IV blocks 4.8 - 5.3 - 5.7 - 6.0 - 6.2 LS1 - LS2 - LS3 Sump Style --- Wet Sump Location --- Rear Sump Depth --- 5.46" Maximum Stroke --- 3.62" Oil Filter Location --- Stock Sump Oil Capacity --- 5.7 Quarts Total Oil Capacity --- 6.2 Quarts with Stock Filter Baffled --- Yes Windage Tray --- Not Included Includes: Oil Pan Gasket Sump Baffle Oil Pickup Tube Drain Plug Oil Filter Stud Oil Passage Cover Mounting HardwareDesigned for use with GM #12558253 windage tray, which must be altered to add clearance for the pick-up tube Ideal for Camaro/Firebird ('67-'69), Nova/Apollo/Ventura/Omega ('82-'92), GM A-body ('64-'72), G-body ('78-'87), and F-body ('82-'92) Engine position (fore/aft or height) may need to be adjusted for clearance, depending on application Fits most LS engines, except LS7 or LS9 dry sump applications Requires the use of LS3 style dipstick and tube: GM #12669528 and 12625031, respectively Takes AC Delco PF48/PF48E, K&N HP-1017, or equivalent oil filter Free Shipping!!! All orders are shipped the next business day & tracking will be provided. · Ebay messages are the best form of communication, these messages are monitored throughout the day (Monday-Friday) · Tracking is provided for all orders and can be found in your Ebay purchase history · Various shipping services are used. These include USPS First Class, USPS Priority, Fedex Smartpost, Fedex Ground/Home delivery & UPS Ground · Please contact me if you would like a specific shipping service used · Orders ship 5 days a week, Monday-Friday · Friday orders placed after 8am Central Time will not ship until Monday · Shipping only within the lower 48 states · 30 day returns on New, original condition items · Damaged, used or incomplete returns are subject to a 50% refund · Please contact me before leaving neutral or negative feedback. I will try to help and resolve all issues that may occur.
